Medical Engineering Systems

Overview

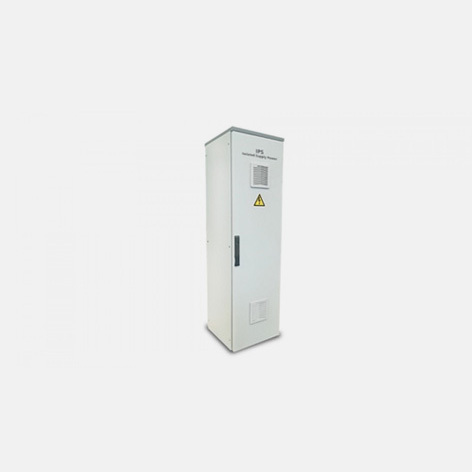

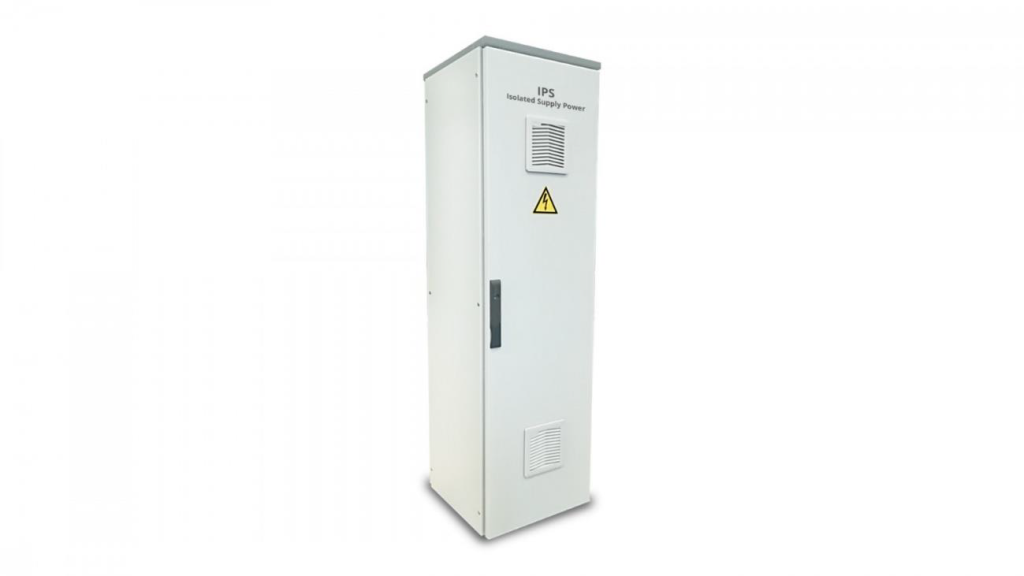

Isolated Power Systems(IPS) is a specific framework for the supply of electrical systems in the medical field, in compliance with CEI 64-8. These panels guarantee total protection from macro and micro shocks through electrical segregation between user and power grid.
The panels are supplied in different ranges up to 10 kVA, in order to meet all possible applications required in medical spaces. The possibility of customization of the panel is extremely wide, since each version is characterized by a considerable number of configurations for auxiliary and spare circuits, as requested by the customer.
These features allow you to create custom panels with additional switches and different rated currents.
COMPLETE PANELS RANGE: 3 kVA, 5 kVA, 8 kVA e 10 kVA USE These panels are specific for the supply of electrical systems in medical areas, in accordance with the regulation CEI 64-8. They guarantee total protection from macro and micro shock through electrical segregation between utiliser and electric net. USE AREAS The continuity of service is an essential need especially in the surgical wards, anesthesia or intensive care units, as in the dentist’s offices or in the laboratories for analysis. The accidental suspension of the activity could affect the result of the operation or even the health conditions of the patient, for this reason the use of special protection systems is indispensable in order not to allow the automatic interruption of the electrical circuits at the first
breakdown. For these circuits it is necessary to adopt the supply through the isolation transformer as a protection system against accidental contacts danger.

FLEXIBILITY

The panels are supplied in different ranges up to 10 kVA, in order to meet all the possible applications required in the medical spaces. The possibility of customization of the panel is extremely wide, since each version is characterized by a considerable number of configurations for auxiliary and spare circuits, as required from the customer. These features allow to create personalized panels with additional switches and different nominal currents. SAFETY The panels for medical use are considered as “Class II electromedical devices with metal case” in accordance to the article 14.2 of the regulation CEI EN 60601-1 (CEI 625). In each panel the total selectivity is guaranteed, ensuring in this way the continuity of the service in the circuits not effected by the breakdown. In addition the panels are provided with forced ventilation. The maximum operative safety for the medical staff is supported from the remote panels too, which are able to signal pre-alarms (through visual signals) and alarms (through both visual and acoustic signals). The isolating transformer, in accordance with the regulation 61558-2-15, ensures complete electrical segregations between the utiliser and the electric net, avoiding dangerous leakage currents in case of accidental contact. Moreover the isolating transformers are provided with a probe Pt100, enable to detect the values of the transformer working temperature, guaranteeing the real-time monitoring of the operative conditions. The medical isolation panels are provided with isolation transformer, automatic transfer switching device that integrates all the monitoring components indicated in the Regulations CEI 64-8;V2:2015-08 and the Regulation IEC 60364-7-710 for the IT-M systems, that are: o Automatic transfer switching device and monitoring unearthed power supply o Isolation control o Transformer IT temperature and load monitoring o Insulation fault locator of the single lines On the secondary of the isolation transformer are connected 5 automatic bipolar switches, which are linked the electricity

Overview

Thanks to the Control Panel the medical team can receive information about the medical gas system, HVAC plant and electrician power supply system.

The system of automation and management of surgical procedures and integrated management of surgical devices in the operating room. The device manager plugin allows the operator to control all key devices and their main functions.

The system of automations and management of surgical procedures and integrated management of surgical devices in the operating room. The device manager plugin allows the operator to control all key devices and their main functions.

Design

Attractive and modern solution with high image and video resolution, thanks to which it is possible to make video conferences to underline and clarify specific contents. The system also allows the control of environmental cameras and the ability to record videos and images.

Easy and intuitive

The plugin has been designed to make its use easy and intuitive and the interfaces design allows an effective and immediate interaction between the operator and the system

Hygiene

The wall monitors and workstations can be cleaned easily and hygienically.

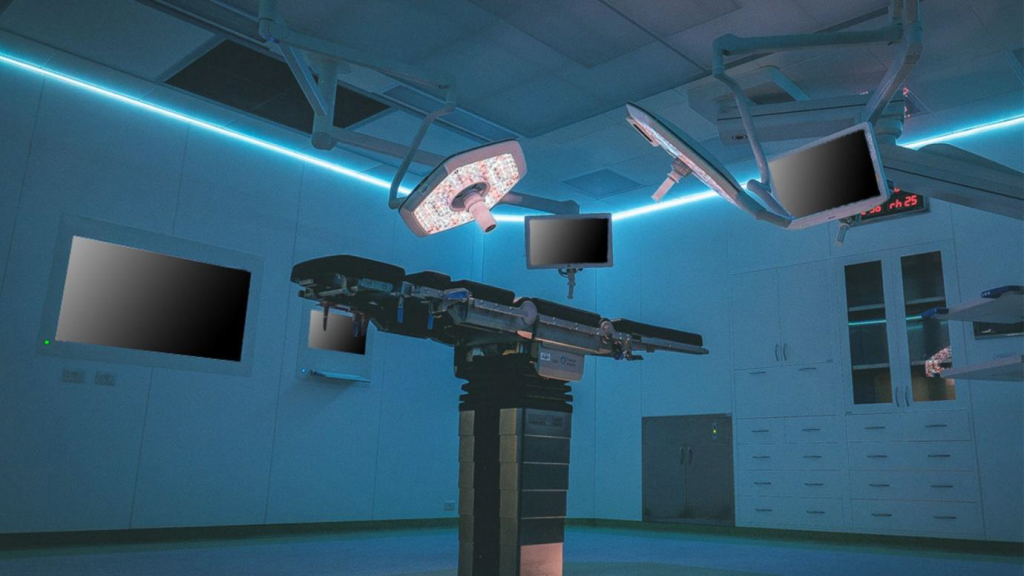

Operation room integration

PACS is an ergonomic solution suitable for both wards and operating theatres for the management of electronic clinical data and for various electronic and IT applications. The points of care can be placed inside or outside the operating theatre for the consultation of data coming from the company information system. The PACS is an IP65 grade aluminium enclosure with a glass cover and is perfect for wall mounting.

Features

Manage video signals in the operating room
Video conference and video streaming
Operating report with images
Medical devices control

FOR THE PREVENTION OF EXCESS PRESSURE IN ROOMS

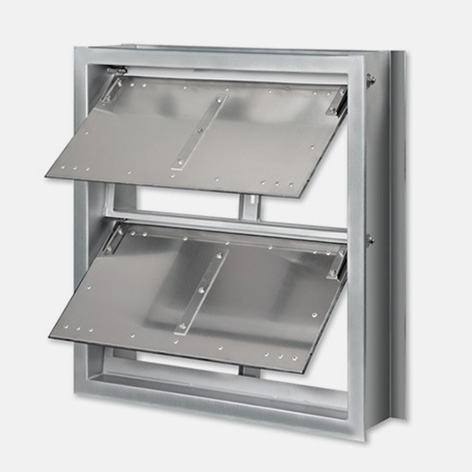

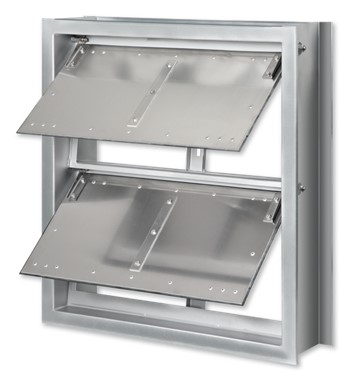

Pressure relief dampers for gas fire extinguishing systems and transformer substations
• Air leakage with back pressure to EN 1751, class 4
• Maximum differential pressure: 5000 Pa
• The differential pressure can be adjusted from 50 – 1000 Pa (B > 600 mm: 600 Pa max.)
• Blades made of aluminium, casing made of galvanised steel
• Blades open when the maximum differential pressure is exceeded and close automatically when the pressure drops
• Blade locking with permanent magnet
• Robust, maintenance-free construction
• Available in standard sizes and many intermediate sizes
• Operating temperature 0 to 80 °C
Optional equipment and accessories
• Installation subframe
• Powder coating (RAL or DB)
• Stainless steel construction with stainless steel casing; blades made of aluminium

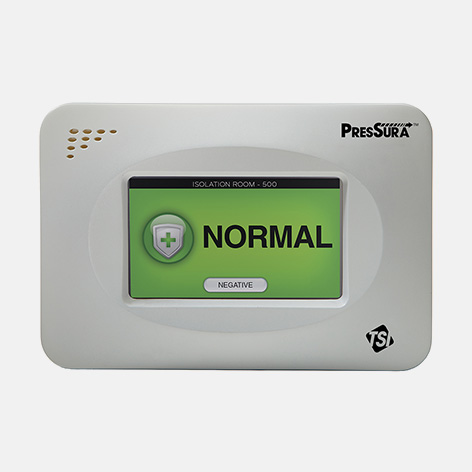

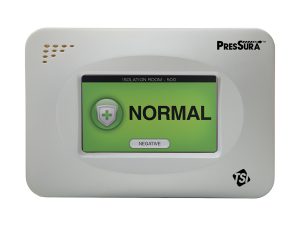

Room Pressure Monitors (Room Pressure Indicators) and Environmental Monitors are designed to keep critical pressurized spaces such as hospital isolation rooms, operating rooms, pharmacies, and cleanrooms safe by reducing the chance of contamination.
Enables compliance and regulatory requirements as per, ASHRAE Standard 170: Ventilation of Healthcare Facilities and Other medical, pharmaceutical, and construction standards.

Product Overview

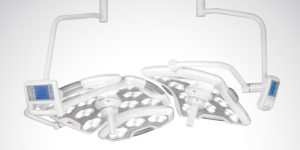

The Surgical Lighting System offers superior optical performance that is smart, sleek, and adaptable:

Smart

• Automatic Intensity maintains preferred illuminance despite changes made to the spot size of the surgery light
• Adaptive Lighting utilizes sensors to detect obstructions and dim blocked portions of the light head while boosting others to maintain illumination
• Integrated ambient light and task light provide low illumination levels during minimally invasive procedures
• With four different spot sizes, four different color temperatures (3,500-5000 kelvin), and ten different intensities, there are over 160 different ways to customize your operating room lighting experience
• An optional HD camera provides clear, vivid surgical site visualization

Sleek

• Unique design promotes unobstructed airflow to the surgical site
• The light head has an ingress protection rating of IP54 to help guard against dust and fluids
• Durable aluminum materials ensure the light can withstand the rigors of the OR

Adaptable

• An open architecture allows the full customization of the system to meet the needs of any operating room

• Configurable to any OR set up with a highly customizable solution consisting of:
o Light heads
o Single or Dual (side-by-side) Monitors
o All-Power or Standard Video Connectivity System
o Radiation Sheild
o In-Light Cameras

How the Surgical Lighting System Works

The Surgical Lighting System combines performance and customization that is excellent for any Operating Room (OR) and Ambulatory Surgery Center (ASC) settings. This surgical light has ten different intensity settings, four spot sizes (focal point sizes), and four different color temperature options with 160 ways to customize your lighting experience. Automatic intensity feature allows for consistent illumination despite adjustments to the lighting system. Adaptive lighting automatically detects obstructions to dim blocked portions of the light head for a more comfortable experience for the surgical team.

An adaptable suspension system allows for customization of the operating suite, including operating room lights, monitors (single or side-by-side), standard or All-Power utility management solutions, and radiation shields. The optional HD camera provides quality, high-resolution visualization of the surgical site.

Key Features o Surgical Lighting System:

• Automatic Intensity – Maintain preferred illumination when the light is adjusted
• Adaptive Lighting – Obstructed LEDs dim and non-obstructed LEDs boost to maintain illumination and comfort for the surgical staff
• Designed with Airflow in Mind – Unique shape allows clean, laminar air to glide gently around the light head
• Adaptable Suspension System – With thousands of combinations, the system can be customized for any operating room and budget

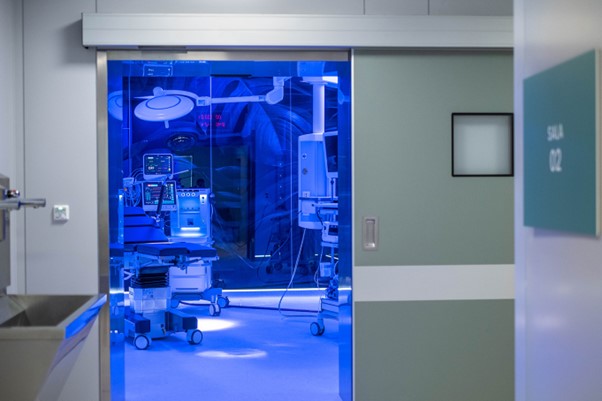

The hermetically sealing hospital sliding doors with 1 or 2 leaves, available with stainless steel, HPL, and glass panel, perform automatically the lowering and translation of the leaf to approach it both to the wall and to the floor, ensuring hermetic seal by means of the compression of special rubber gaskets on the four sides of the door.
The automation is equipped with a special software to separately and independently manage the lowering and translation phases during opening and closing of the door, controlling power and speed.
These hospital doors are available with stainless steel, HPL, and glass panels, for a passage opening of up to 2,000 mm. Automation is provided by brushless motor that reduces consumption and ensures greater durability.

The door is hermetically sealing, automatic sliding doors for hospitals are available with HPL panel in colour variants.

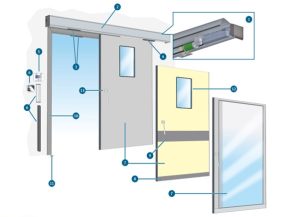

Legends

1. Automation unit
2.  Cladding unit
3. Closing safety sensor
4. Optional opening safety sensor
5. Digital programmer
6. Activation devices
7. Panel
8. Base
9. Horizontal band
10. Optional wall frame (or semi-wall frame)
11. Closing striker
12. Vision panel (optional)
13. Handle (optional)

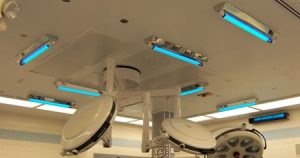

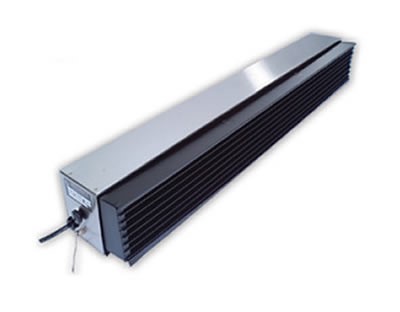

The Ultraviolet UVC Fixed Mount Package offers a fixed solution to help reduce potential microorganisms in the environment. By using a series of strategically placed UVC disinfection fixtures, the Fixed Mount Package also helps to:
• Improve the indoor environment
• Improve in-between case and terminal cleaning disinfection in less than 10 minutes
• Minimize staff (no additional employees required)
Please learn more about our Fixed Mount disinfection solutions by visiting each of the helpful links surrounding the Fixed Mount Package atom.

Ultraviolet Germicidal UVC Fixed Mount Packages from American Ultraviolet are designed to help reduce microbiological burden in the indoor environment with UVC energy. A pre-programmed control panel with intuitive design allows for quick UVC disinfection as adjunct cleaning technology for use in-between cases and after terminal clean. These fixed UVC systems act exactly like mobile UVC devices, but no longer require additional FTE’s, extra device storage and are always available – with the “push of a button.”
Permanent Installation
Fixed Mount Package is permanently installed in your most critical area and therefore always available for UV room disinfection.
Timed Daily Cycle
Simply set it like an alarm clock and, without the need for additional personnel, run the OR Package at full intensity, at any predetermined time the room will not be in use.
Use Before, During and After a Procedure
Use the Ultraviolet UVC Fixed Mount “Package” to disinfect the OR before and/or after surgical procedures.
The UVC Fixed Mount Package Ultraviolet is inexpensive to install and maintain, and it does not inconvenience others who wish to use the operating rooms, without UVC lamps, as the lamps can simply be turned off.
Since the 1930s UV disinfection has been used to reduce DNA and RNA-based microorganisms and provides operating room personnel, and patients, with improved UV disinfection.
The Fixed Mount Package, and many other UVC products manufactured by American Ultraviolet since 1960, have been safely operating in hospitals, laboratories, clean rooms, doctors’ offices, commercial buildings, food processing plants and residences throughout the world – any place a concern for additional disinfection exists. American Ultraviolet is the clear leader in UVC room disinfection and remains committed to providing the highest quality equipment at the most competitive price.

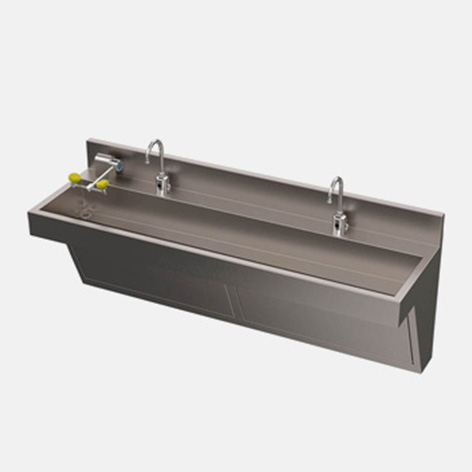

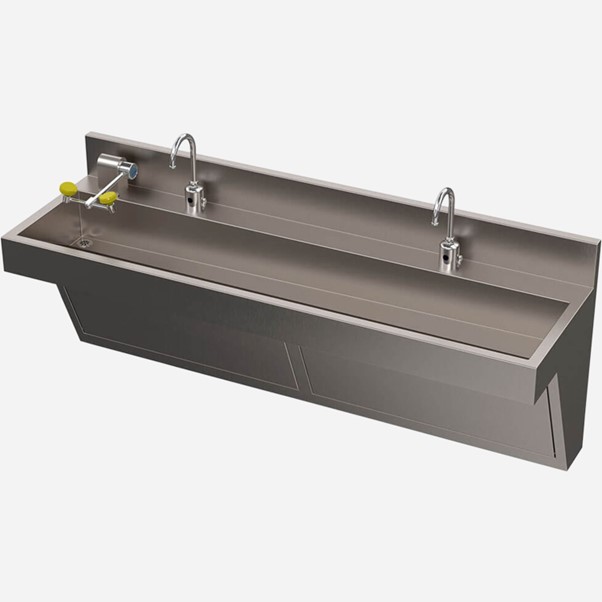

Enhance your facilities with Scrub Sinks, specifically designed to withstand the demands of the healthcare sector. Our scrub sinks prioritize patient safety and come in easy-to-clean options. Choose from single, double, or triple-station models, including Surgical, Compact, and ADA Scrub Sinks.
Whitehall’s Infection Control Sink helps prevent the spread of bacteria with its solid-surface material and antimicrobial additive, deep basin, offset drain, and more. Our solid-surface scrub sinks are ideal for hospitals, pharmaceuticals, and other facilities requiring increased infection control.
Choose from a range of hands-free activation options and additional safety features, ensuring your patients receive the best care possible.
