Our modular operating room wall systems offer a flexible and efficient solution for healthcare facilities. These prefabricated walls can be easily customized to accommodate various medical equipment and services. They are designed to meet stringent safety and hygiene standards, including fire resistance, noise reduction, and X-ray shielding. The modular design allows for easy installation and future modifications, ensuring the longevity and adaptability of the operating room environment.
By partnering with us, you can benefit from our expertise in designing and installing state-of-the-art operating room solutions. Our team works closely with healthcare professionals to understand their specific needs and deliver tailored solutions. Our successful projects, such as the King Hamad Hospital and American Mission Hospital in Bahrain, demonstrate our commitment to quality and innovation.
Our modular operating room wall systems offer a flexible and efficient solution for healthcare facilities. These prefabricated walls can be easily customized to accommodate various medical equipment and services. They are designed to meet stringent safety and hygiene standards, including fire resistance, noise reduction, and X-ray shielding. The modular design allows for easy installation and future modifications, ensuring the longevity and adaptability of the operating room environment.
By partnering with us, you can benefit from our expertise in designing and installing state-of-the-art operating room solutions. Our team works closely with healthcare professionals to understand their specific needs and deliver tailored solutions. Our successful projects, such as the King Hamad Hospital and American Mission Hospital in Bahrain, demonstrate our commitment to quality and innovation.
We ensure complex realization of projects for modular oper- ating theaters and other hospital rooms. Our offer includes measurements on the site, design, production, installation and service.
SYSTEM
The flexible, prefabricated, modular system for operating theatres, preparation rooms, scrub areas and other hospital rooms. The design of the modular system is carried out in accordance with technical building requirements.
The advantages of the system are:
- Quick installation time
- Surfaces easy to clean and disinfect
- Effective prevention against bacteria
- Easy access to all devices behind the walls
- Easy dismantling for new construction, renovation or maintenance
- Mechanical durability and corrosion resistance
- Perfect integration with other equipment as surgical scrub sinks, cabinets, ventilation devices, X-ray viewers, etc.
- Modern and aesthetic look
System
SYSTEM ELEMENTS
We offer complex solutions for operating theatres including following elements:- Wall Panels System
- Ceiling Panels System
- Laminar Ceilings And Exhaust Grills
- Peripheral Lights
- System Doors
- Pass Boxes
- Observation Windows And Pass-Through Windows
- Medical Cabinets
- Surgical Scrub Sinks
- Flooring
- Control System OPERA
- X-Ray Viewers
- Electrical Switches And Gas Sockets
- Cameras
- Monitors
- Clock
SYSTEM ELEMENTS
We offer complex solutions for operating theatres including following elements:- Wall panels system
- Ceiling panels system
- Laminar ceilings and exhaust grills
- Peripheral lights
- System doors
- Pass boxes
- Observation windows and pass-through windows
- Medical cabinets
- Surgical scrub sinks
- Flooring
- Control system OPERA
- X-ray viewers
- Electrical switches and gas sockets
- Cameras
- Monitors
- Clock
PHASE 1
– measurements of the site
PHASE 2
– Layouts and visualisations
PHASE 3
– preparation of material fabrication and production
PHASE 4
– installation of the substructure on the site
PHASE 5
– installations of the site panel
PHASE 1
– measurements of the site
PHASE 2
– Layouts and visualisations
PHASE 3
– preparation of material fabrication and production
PHASE 4
– installation of the substructure on the site
PHASE 5
– installations of the site panel

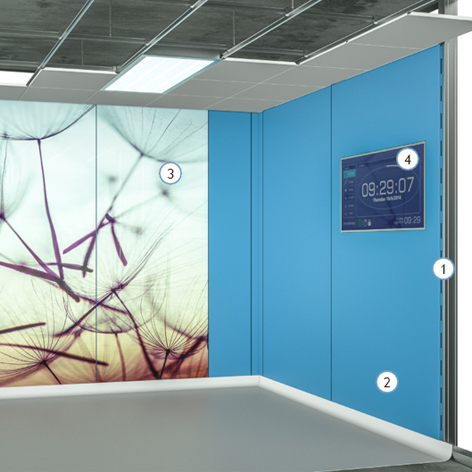

Wall system (screwing system)
- Substructure
- Wall panel (epoxy coated steel)

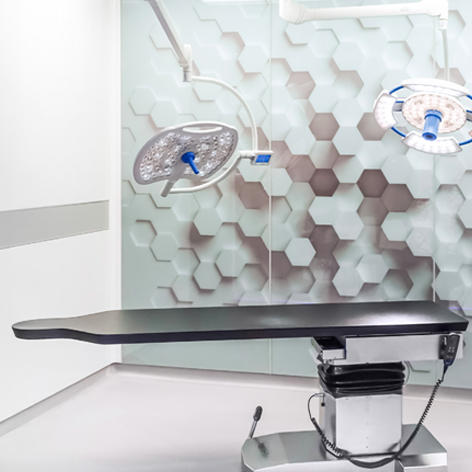

- Wall panel (glass with photo)
- Control panel OPER
WALL SYSTEM
DESIGN
Installation of wall panels is based on the “C” and “U” pro- files, width 50mm, 75 mm or 100mm, made of high quality galvanized steel 0,6-2mm. “U” profiles are mounted to the floor and ceiling using anchors. “C” profiles are mounted in vertical position, connected to “U” profiles, which creates the basis for the installation of the wall panels.
The wall panels are fixed by the screws with maximum joint width of 6 mm sealed by the special gasket.
All internal corner wall panels are curved and easy to clean.
The partition wall system design facilitates the dismantling of any individual panel, to provide easy access for later in- stallations, alterations or repair work.
- Stainless steel (grade AISI 304 or 316),polished or powder coated with antibacterial paint
- Galvanized steel, powder coated with antibacterial paint
- Glass fixed on steel frame, available with decorative photos
- double-layered wall panel: 1,75 m2*K/W
- single-layered wall panel: 1,60 m2*K/W
- double-layered wall panel: Rw(C;Ctr) =57 (-4, -12) dB
- 0,3 m3/hm2 (hypertension and hypotension 500 Pa)
Installation details of the wall panels handing system
- “C” stud with openings
- “U” floor profile
- Adjusting screw
- Hanged wall panel
Door
Wall system (hanging system)
WALL SYSTEM
DESIGN
Installation of wall panels is based on the “C” studs of width 75 mm or 100mm, made of high quality galvanized steel 1,5mm. The studs are levelled using the adjusting screw. The lower “U” profile, made of high quality galvanized steel 1,5 mm is base for plinth – curved connection of wall and floor, it is mounted to the floor with galvanized anchor. The upper “U” profile is closing the system.
The “C” studs have the special openings to hang the wall panels on the hooks, with maximum joint width of 3 mm sealed by the special gasket.
All internal corner wall panels are curved and easy to clean.
The partition wall system design facilitates the dismantling of any individual panel, to provide easy access for later installations, alterations or repair work.
- Stainless steel (grade AISI 304 or 316),polished or powder coated with antibacterial paint
- Galvanized steel, powder coated with antibacterial paint
- Glass fixed on steel frame, available with decorative photos
- double-layered wall panel: 1,75 m2*K/W
- single-layered wall panel: 1,60 m2*K/W
- double-layered wall panel: Rw(C;Ctr) =57 (-4, -12) dB
- 0,3 m3/hm2 (hypertension and hypotension 500 Pa)
- Clamping profile
- Cross connector
Ceiling panel
Nonius hanger-upper
Nonius hanger-lower
Peripheral light
Peripheral lights
Luminaires for cleanrooms with increased hygienic requirements:
LIGHT SOURCE
- LED light sources
- Fluorescent lamps TECHNICAL DATA
- Quick and easy assembling, to be built-in CLIP IN type ceiling
- Integration with ceiling panels system
- High protection level against dust and water infiltration
- Available dimensions: 1200×600 mm, 1200×300 mm, 600×600 mm
- Luminary coffer made from steel sheet, powder coated in white
- Accessories:DALI dimming
Ceiling System
DESIGN- Metal ceiling is made of individually detachable panels with standard dimensions 600 x 600 mm
- The substructure is made of galvanized steel
- Panels are fixed in clip-in
- Galvanized or stainless steel, powder coated, optionally with antibacterial paint.
- Standard colour is RAL Other color available optionally
- Matt, washable, light resistance surface
- Dust-free, abrasion-proof, corrosion resistant, non-hygroscopic.

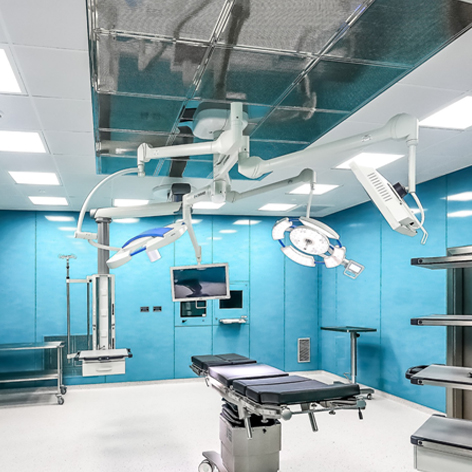

Ceiling System, Peripheral lights, Laminar Ceilings
LAMINAR CEILING AIR DIFFUSERS
The laminar ceiling air diffusers also known as laminar ceilings are to be used for air conditioning of operating theatres and clean rooms. The devices are equipped with absolute H 13 filters with 99,95% filtration efficiency (optionally H 14 with 99,995% filtration efficiency), and provide balanced speed between 0.15 and 0.30 m/s linear (laminar) airflow within operating table area. This type of airflow complies with the highest hygienic requirements.
Individual sizes of air diffusers are made up with a set of modular, tightly connected, standard structure sections with precisely determined capacity ranges. The laminar ceiling air diffusers can be designed in many configurations with specific number of sections suitable for capacity ranges (free configuration of sections is possible according to arrangements with customer). Optionally the alarms of dirty filters can be singalized by OPERA control system.
HERMETICALLY SEALED DOORS
The hermetically sealed medical doors are made of stainless steel with brushed surface or epoxy coated.
The door leaves are filled with highly-compressed polyurethane foam, providing thermal and acoustic insulation at the same time, assuring light weight and rigidity of the leaf.
The doors are tailored to individual customer’s requirements: the dimensions, different shapes and sizes of vision windows, door handles, door frames, optional use of automatics supplied by renowned manufacturers with different activation options.
Medical doors

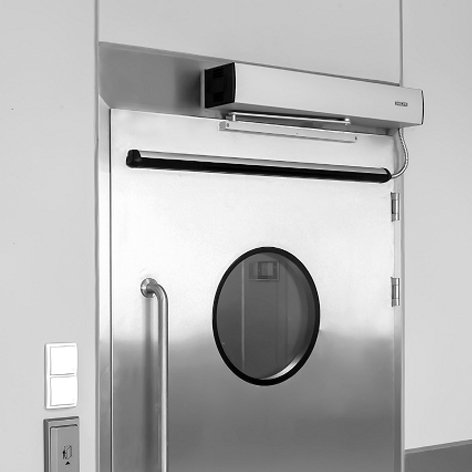

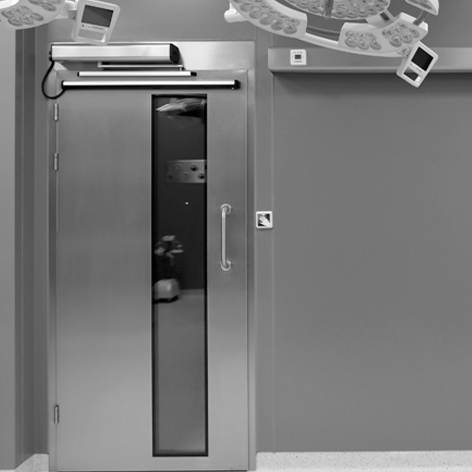

HINGED HERMETICALLY SEALED DOORS
SPECIFICATION- The door leaf and angle door frame are made entirely from stainless steel with brushed
- Angle type, inner side door frame
- Door fittings made of stainless
- Door leaf thickness 40
- Door leaf acoustically and thermally insulated with highly compressed polyurethane foam, density 50 kg/m3, assuring light weight and rigidity of the
- Hygienic silicone gasket cushioning the closing of doors
- Drop down seal increasing air tightness and sound insulation
- Single or double-leaf
- Both side door frame
- Vision windows (round, rectangular, optionally with electric blinds
- Vision windows with PRIVA-LITE® active glass which, under the effect of an electric current, switches from translucent to transparent
- Epoxy coating surface, with antibacterial protection
- Lead protection against X-ray radiation
- Self closers
- Door automation supplied by renowned manufacturers with different activation options (elbow, infrared, knee activation, service, full-open, half-open buttons)

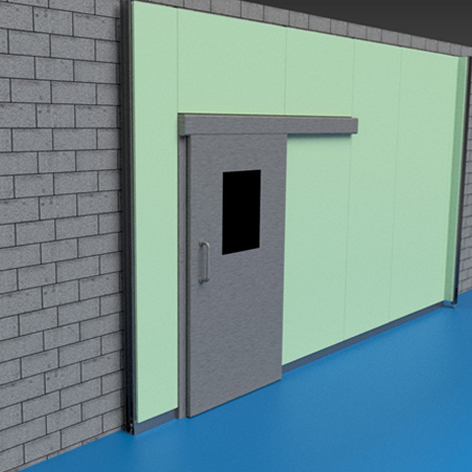

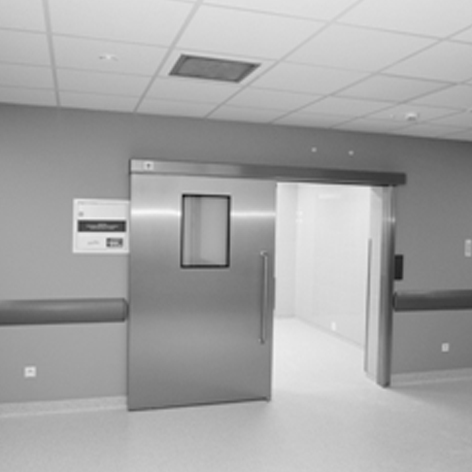

SLIDING HERMETICALLY SEALED DOORS
SPECIFICATION- The door leaf and angle door frame are made entirely from stainless steel with brushed
- Angle type, inner side door frame
- Door fittings made of stainless
- Door leaf thickness 40
- Door leaf acoustically and thermally insulated with highly compressed polyurethane foam, density 50 kg/m3, assuring light weight and rigidity of the
- Hygienic silicone gasket cushioning the closing of doors
- Drop down seal increasing air tightness and sound insulation
- Short or long door handles
- Single or double-leaf
- Both side door frame
- Vision windows (round, rectangular, optionally with electric blinds
- Vision windows with PRIVA-LITE® active glass which,under the effect of an electric current, switches from translucent to transparent
- Epoxy coating surface, with antibacterial protection
- Lead protection against X-ray radiation
- Door automation supplied by renowned manufac turers with different activation options (elbow, infrared, knee activation, service, full-open, half-open buttons)

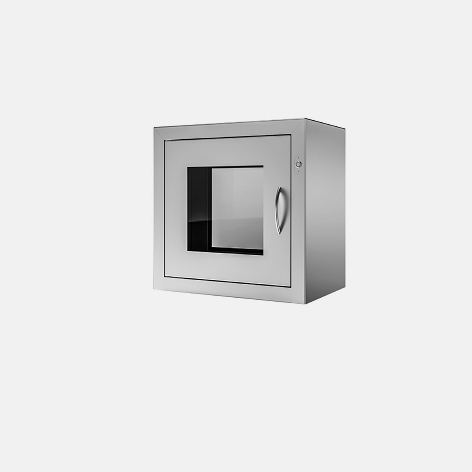

Medical doors Pass-boxes, pass-through windows
- Both side hinged doors, with interlocking feature (preventing opening of both at the same time).
- Electromagnetic or mechanic opening
- Hermetic
- Vision window made of safe
- Made of stainless steel, including Optionally can be produced with lead protection.
- Dimensions according to individual customer
- Flushed with will

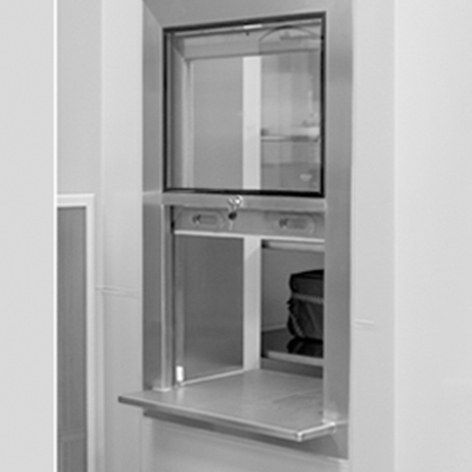

PASS-THROUGH WINDOWS
SPECIFICATION- The window consists of two separate glass panes: fixed upper part and sliding lower part, moving on vertical
- The movement is facilitated by mechanism balanc ing weight for easy The sliding part can be set in any position.
- Made of stainless Optionally can be pro duced with lead glass.
- Dimensions according to individual customer needs.
- Flushed with will
- Optionally can also be fixed into the door leaf.

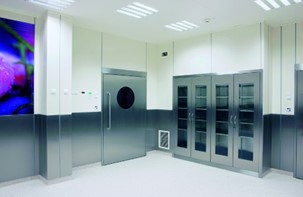

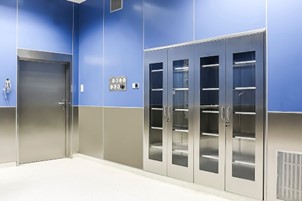

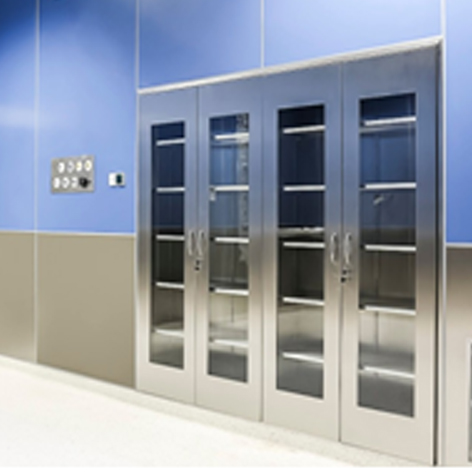

BUILT-IN CABINETS
SPECIFICATION- Built-in cabinets are elements of wall cladding, flushing with wall panels create homogeneous surface.
- Available in any configurations: double, single, with glazed or full doors.
- Made of stainless steel, optionally epoxy
- Dimensions according to individual customer

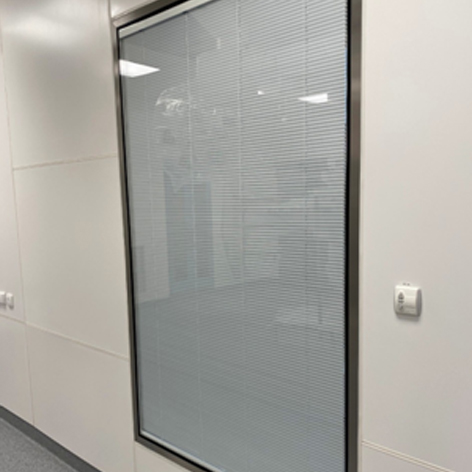

WINDOWS, GLASS ELEMENTS
SPECIFICATION- Made of stainless steel.
- Observation windows flushing with wall panels (fixed or openable), optionally with electrically operated blinds.
- Dimensions according to individual customer
- Optionally can be produced with lead
- Optionally with PRIVA-LITE® active glass which, under the effect of an electric current, switches from translucent to transparent

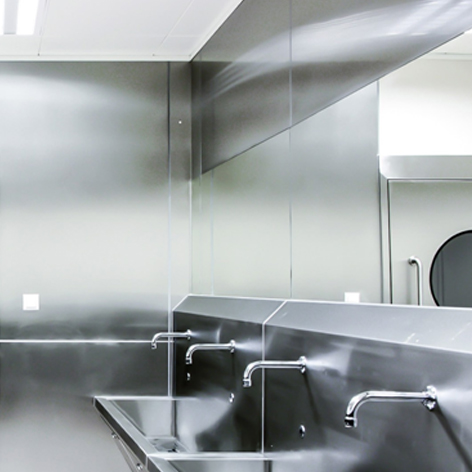

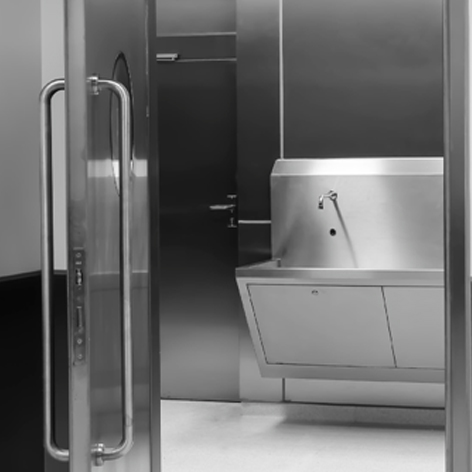

Surgical Scrub Sinks
Types and dimensions:
- SU-01.1, 1 bay, 850x600x1150 mm
- SU-01.2, 2 bays, 1500x600x1150 mm
- SU-01.3, 3 bays, 2100x600x1150 mm
Types and dimensions:
- SU-02.1, 1 bay, 845x635x1170 mm
- SU-02.2, 2 bays, 1600x635x1170 mm
- SU-02.3, 3 bays, 2355x635x1170 mm
Types and dimensions:
- SU-03.1, 1 bay, 845x635x1270 mm
- SU-03.2, 2 bays, 1600x635x1270 mm
- SU-03.3, 3 bays, 2355x635x1270 mm
Surgical Sinks
ADDITIONAL ACCESSORIES FOR SURGICAL SRCUB SINKS:
- Brush dispensers
- Disinfectant fluid or soap dispensers
- Paper towels dispensers
- Elbow operated water taps, wall mounted
- Infra-red water taps, mounted to the sink or wall mounted
- Infra-red water taps with infra-red fluid dispenser

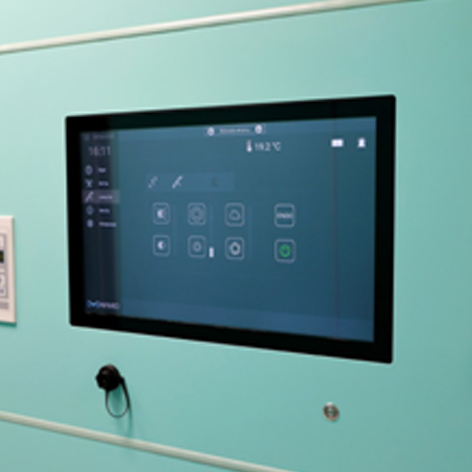

cONTROL SYSTEM
Provides better and easier control of the devices in the operating room from a single location. The system is very flexible, open, modular, can be adjusted to comply the client’s expectations and requirements, accordingly to the above shown solutions. Can be operated from wall mounted control panel or wirelessly from mobile device.
The product is safe and secure and it is a certified Class I Medical Device manufactured in accor- dance with the ISO 9001, 13485 and other European standards. It provides a fully intuitive operation thanks to a simple and user-friendly interface, thereby minimizing the possibility of misuse and avoiding improper treatment operations.
The Flexible, Prefabricated, Modular System For Operating Theatres, Preparation Rooms, Scrub Areas And Other Hospital Rooms. The Design Of The Modular System Is Carried Out In Accordance With Technical Building Requirements.
The advantages of the system are:
• Quick installation time.
• Surfaces easy to clean and disinfect.
• Effective prevention against bacteria.
• Easy access to all devices behind the walls.
• Easy dismantling for new construction,
renovation or maintenance.
• Mechanical durability and corrosion resistance.
• Perfect integration with other equipment as surgical scrub sinks, cabinets, ventilation devices, X-ray viewers, etc.
• Modern and aesthetic look.
Prefabricated wall system offers the possibility to include in the planning stages complicated installations with different needs, such as air-conditioning, heating, sanitation, high- and low-voltage supply, electro-medical apparatus, medical gases, as well as fulfilling of needs for X-ray shielding, noise- and fire protection.
prefabricated wall system is a prefabricated modular operating room system.
The modular structure gives planners and architects every freedom in planning the floor layout of the building.
Even during the operating phase, Our wall system can be adapted to the latest state of operating room technology with a small amount of structural work.
In combination with the long service life, this means that operation of the operating room units is extremely economic.
The interfaces to the other building trades are precisely defined in advance. Thus, the amount of work involved in coordinating trades in the operating room area is significantly reduced by close cooperation with specialist planners.
General
The wall system in operating rooms and intensive care is designed as non-load-bearing interior wall.
It is constructed as a modular framework system (1200 mm grid).
The high demands, that are particularly required in operating rooms, especially for installability and surface quality, are fulfilled. The wall elements can be easily dismantled and re-assembled.
Wall version
• Double-faced wall in various thickness
• Wall thickness 100 mm = Installation space 60 mm
• Wall thickness 150 mm = Installation space 110 mm
• Wall thickness 200 mm = Installation space 160 mm (If more wall thickness is required, two single walls will be erected)
Standard wall heights
• Operating rooms = 3.000 mm
• Ancillary rooms = 2.700 mm
• Corridors = 2.400 mm
Noise isolation
• Double paneled walls without mineral fiber wool, R’w= 44 dB
• Double paneled walls with mineral fiber wool, R’w= 56 dB
Fire protection
• The EMV wall system consists of non- combustible materials.
• In case of fire, no toxic gasses appear.
X-ray protection
• Double paneled walls got a lead equivalent of 0,68 mm (100 kV)
• Higher lead equivalents possible.
Surface version
Alternatives for the mentioned walls before:
• stainless steel painted, up to false ceiling
• stainless steel polished, grain 240
Material of the wall elements:
• Chrome nickel steel, DIN59382, No. 1.4301, 1,0 mm thick.
• Chrome nickel steel is electrically conductive and bacteriostatic.
• The surface is untreated.
Wall elements painted
• Stainless steel as before.
• The surface is finished with powder coating >= 60 µm.
Wall elements polished, grain 240
The material is resistant to:
• the cleaning agents used in hospitals (as in DGHM list)
• disinfectants (as in DGHM list)
• water and steam
• laser
The Flexible, Prefabricated, Modular System For Operating Theatres, Preparation Rooms, Scrub Areas And Other Hospital Rooms. The Design Of The Modular System Is Carried Out In Accordance With Technical Building Requirements.
The advantages of the system are:
• Quick installation time.
• Surfaces easy to clean and disinfect.
• Effective prevention against bacteria.
• Easy access to all devices behind the walls.
• Easy dismantling for new construction,
renovation or maintenance.
• Mechanical durability and corrosion resistance.
• Perfect integration with other equipment as surgical scrub sinks, cabinets, ventilation devices, X-ray viewers, etc.
• Modern and aesthetic look.
Prefabricated wall system offers the possibility to include in the planning stages complicated installations with different needs, such as air-conditioning, heating, sanitation, high- and low-voltage supply, electro-medical apparatus, medical gases, as well as fulfilling of needs for X-ray shielding, noise- and fire protection.
prefabricated wall system is a prefabricated modular operating room system.
The modular structure gives planners and architects every freedom in planning the floor layout of the building.
Even during the operating phase, Our wall system can be adapted to the latest state of operating room technology with a small amount of structural work.
In combination with the long service life, this means that operation of the operating room units is extremely economic.
The interfaces to the other building trades are precisely defined in advance. Thus, the amount of work involved in coordinating trades in the operating room area is significantly reduced by close cooperation with specialist planners.
General
The wall system in operating rooms and intensive care is designed as non-load-bearing interior wall.
It is constructed as a modular framework system (1200 mm grid).
The high demands, that are particularly required in operating rooms, especially for installability and surface quality, are fulfilled. The wall elements can be easily dismantled and re-assembled.
Wall version
• Double-faced wall in various thickness
• Wall thickness 100 mm = Installation space 60 mm
• Wall thickness 150 mm = Installation space 110 mm
• Wall thickness 200 mm = Installation space 160 mm (If more wall thickness is required, two single walls will be erected)
Standard wall heights
• Operating rooms = 3.000 mm
• Ancillary rooms = 2.700 mm
• Corridors = 2.400 mm
Noise isolation
• Double paneled walls without mineral fiber wool, R’w= 44 dB
• Double paneled walls with mineral fiber wool, R’w= 56 dB
Fire protection
• The EMV wall system consists of non- combustible materials.
• In case of fire, no toxic gasses appear.
X-ray protection
• Double paneled walls got a lead equivalent of 0,68 mm (100 kV)
• Higher lead equivalents possible.
Surface version
Alternatives for the mentioned walls before:
• stainless steel painted, up to false ceiling
• stainless steel polished, grain 240
Material of the wall elements:
• Chrome nickel steel, DIN59382, No. 1.4301, 1,0 mm thick.
• Chrome nickel steel is electrically conductive and bacteriostatic.
• The surface is untreated.
Wall elements painted
• Stainless steel as before.
• The surface is finished with powder coating >= 60 µm.
Wall elements polished, grain 240
The material is resistant to:
• the cleaning agents used in hospitals (as in DGHM list)
• disinfectants (as in DGHM list)
• water and steam
• laser
