1. Substructure
  2. Wall panel (epoxy coated steel)
  3. Wall panel (glass with photo)
  4. Control panel OPER

DESIGN
Installation of wall panels is based on the “C” and “U” profiles, width 50mm, 75 mm or 100mm, made of high quality galvanized steel 0,6-2mm. “U” profiles are mounted to the floor and ceiling using anchors. “C” profiles are mounted in vertical position, connected to “U” profiles, which creates the basis for the installation of the wall panels.
The wall panels are fixed by the screws with maximum joint width of 6 mm sealed by the special gasket.
All internal corner wall panels are curved and easy to clean.
The partition wall system design facilitates the dismantling of any individual panel, to provide easy access for later installations, alterations or repair work.

  1. Substructure
  2. Wall panel (epoxy coated steel)
  3. Wall panel (glass with photo)
  4. Control panel OPER

DESIGN
Installation of wall panels is based on the “C” and “U” profiles, width 50mm, 75 mm or 100mm, made of high quality galvanized steel 0,6-2mm. “U” profiles are mounted to the floor and ceiling using anchors. “C” profiles are mounted in vertical position, connected to “U” profiles, which creates the basis for the installation of the wall panels.
The wall panels are fixed by the screws with maximum joint width of 6 mm sealed by the special gasket.
All internal corner wall panels are curved and easy to clean.
The partition wall system design facilitates the dismantling of any individual panel, to provide easy access for later installations, alterations or repair work.

  1. Substructure
  2. Wall panel (epoxy coated steel)
  3. Wall panel (glass with photo)
  4. Control panel OPER
SURFACES
  • Stainless steel (grade AISI 304 or 316),polished or powder coated with antibacterial paint
  • Galvanized steel, powder coated with antibacterial paint
  • Glass fixed on steel frame, available with decorative photos
Air permeability:
  • 0,3 m3/hm2 (hypertension and hypotension 500 Pa)
TECHNICAL DATA
Heat resistance:
  • double-layered wall panel: 1,75 m2*K/W
  • single-layered wall panel: 1,60 m2*K/W
Sound insulation:
  • double-layered wall panel: Rw(C;Ctr) =57 (-4, -12) dB

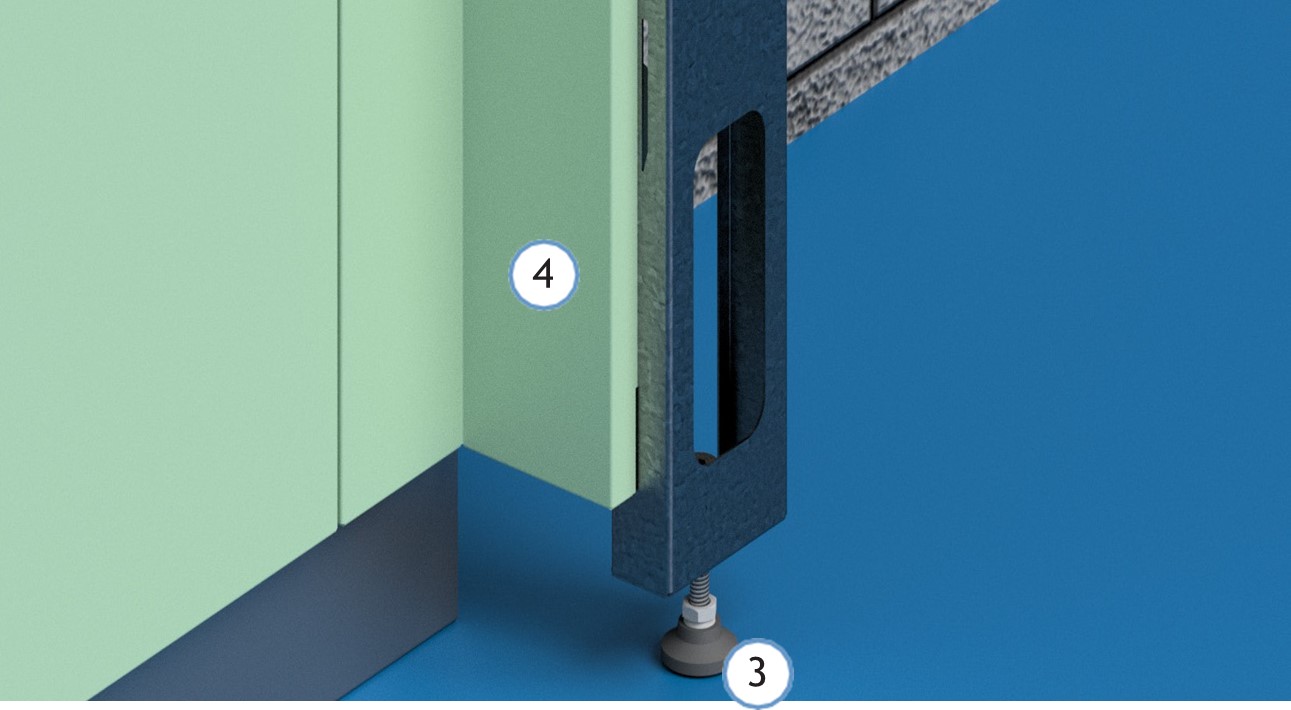

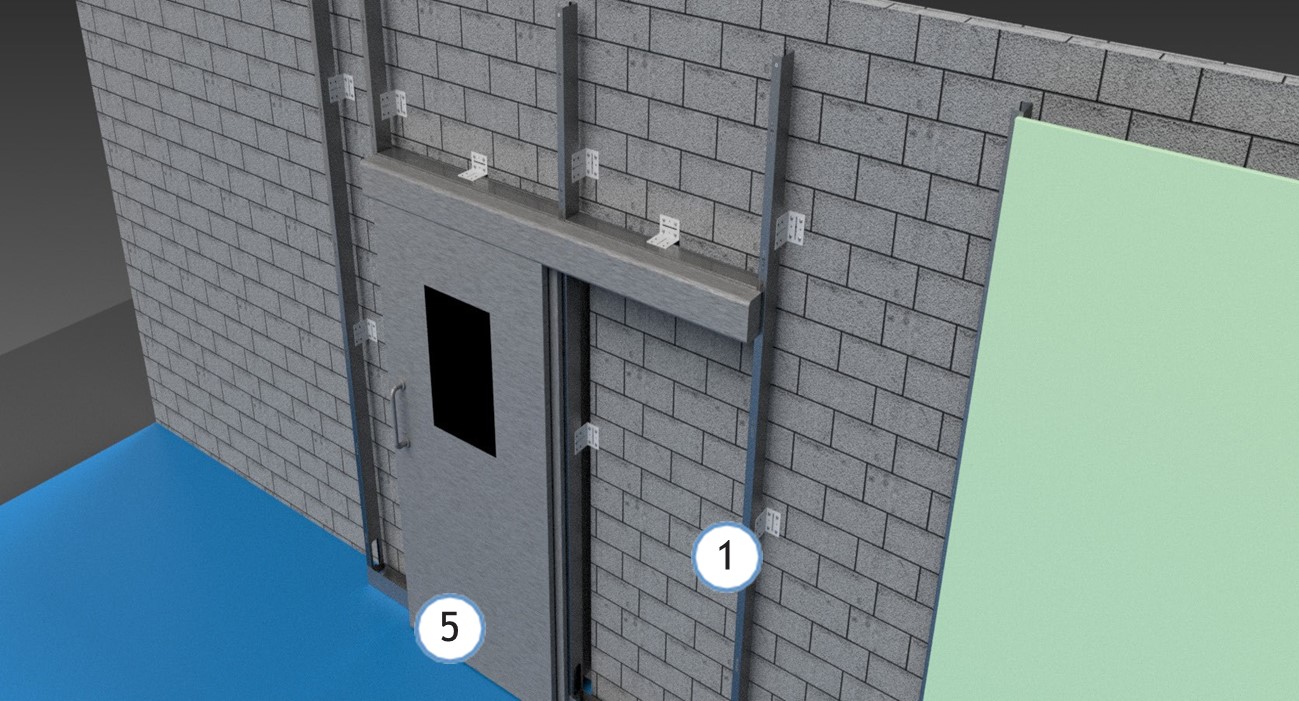

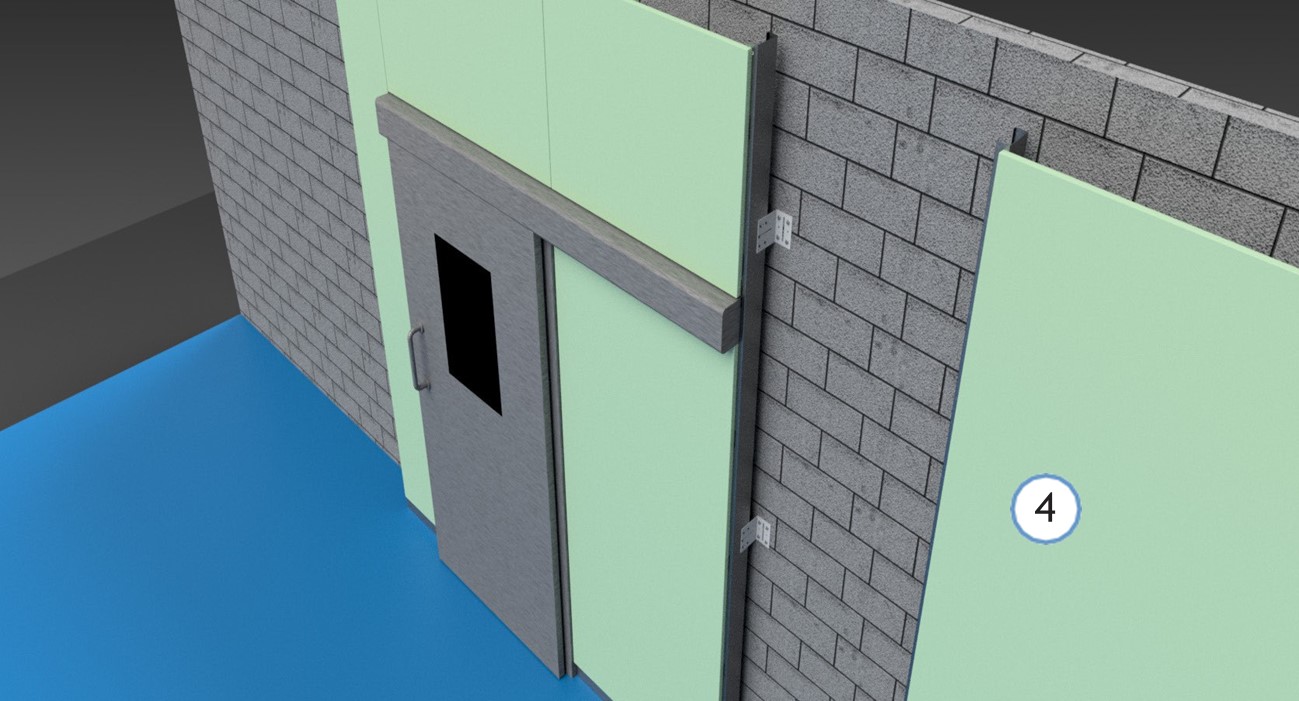

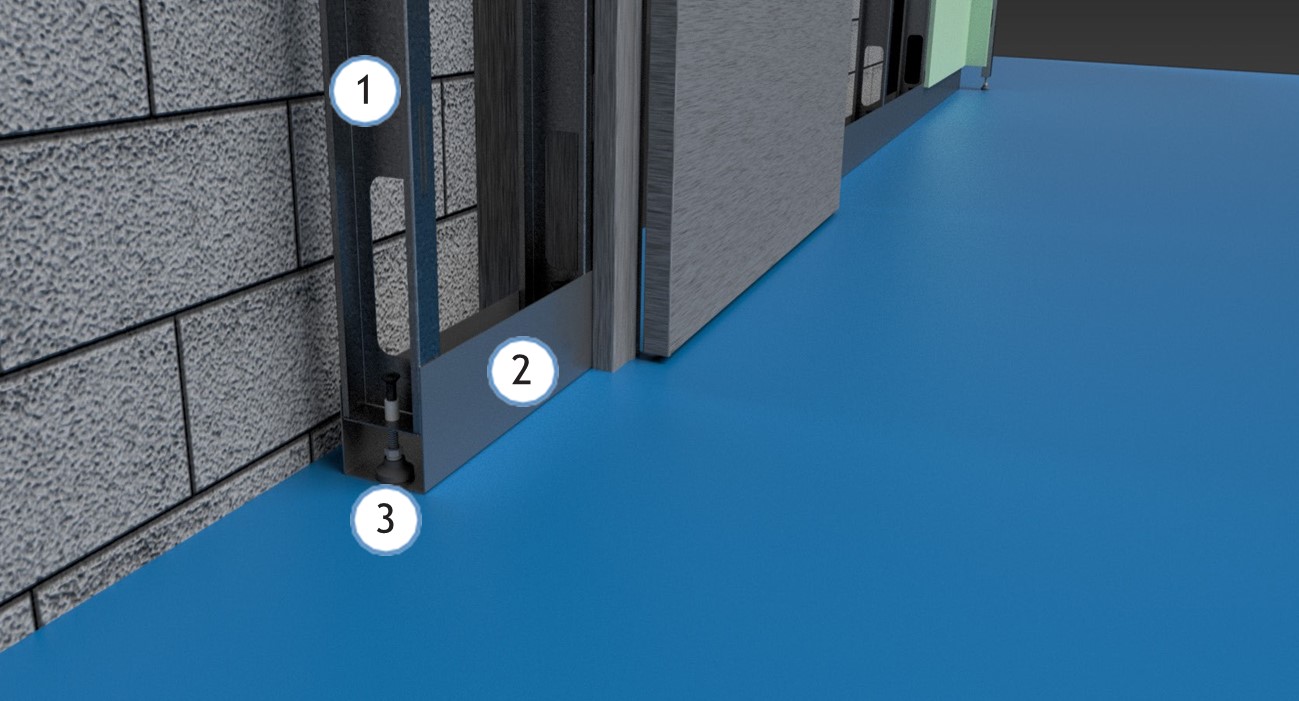

Installation details of the wall panels handing system

  1. “C” stud with openings
  2. “U” floor profile
  3. Adjusting screw
  4. Hanged wall panel

  5. Door
